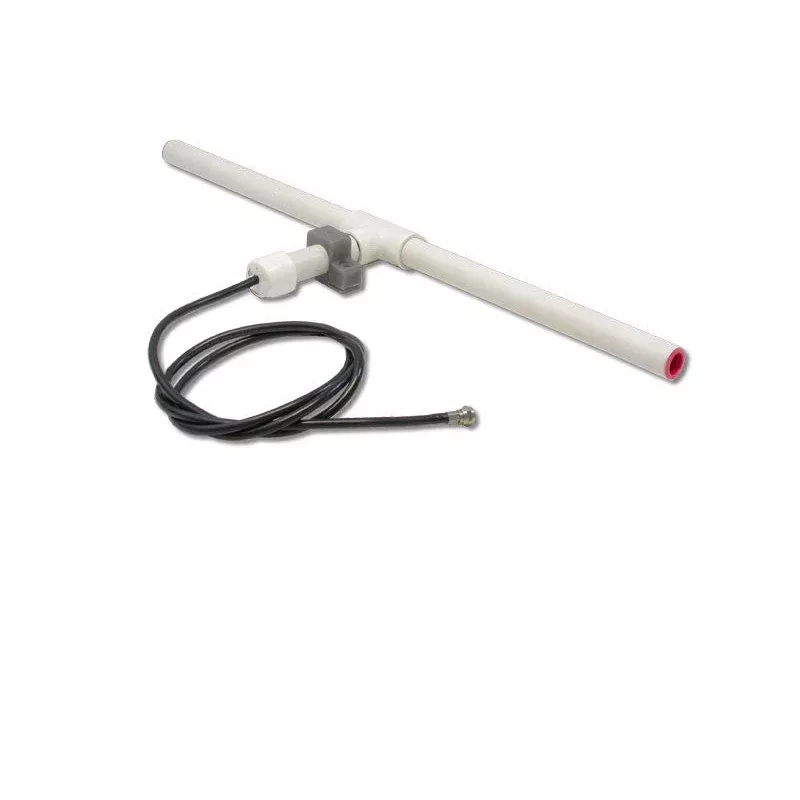

Linear EXA-2000: Directional Remote Antenna
The Model EXA-2000 Directional Remote Antenna is designed to enhance the radio range of Linears receivers. This antenna can be connected to the F connector on many Linear receivers to improve their range when they must be located in poor signal reception locations. Usually an increase of 20-30% range can be expected. The versatile EXA-2000 can be mounted either vertically or horizontally.
NOTE: Generally, the higher the antenna is mounted above ground level, the better the radio range will be.
The EXA-2000 is a 1/2 wave, center fed, antenna composed of two parts: an antenna assembly with a ten-foot, 75-ohm coaxial cable with an F connector and two mounting brackets. The cable connects to the F connector on the receivers. If the antenna must be mounted further than ten feet from the receiver, an additional extension cable of 15 feet may be used for a maximum cable run of 25 feet. Because of the cable resistance, the performance of the EXA-2000 may be degraded by using more than 25 feet of cable.
* Paintable PVC housing
* Includes 10 feet of coax
* Directional remote antenna
* Two mounting brackets included
* 21 W x 5 H x 1.5 D
* Order number: AAE00331
