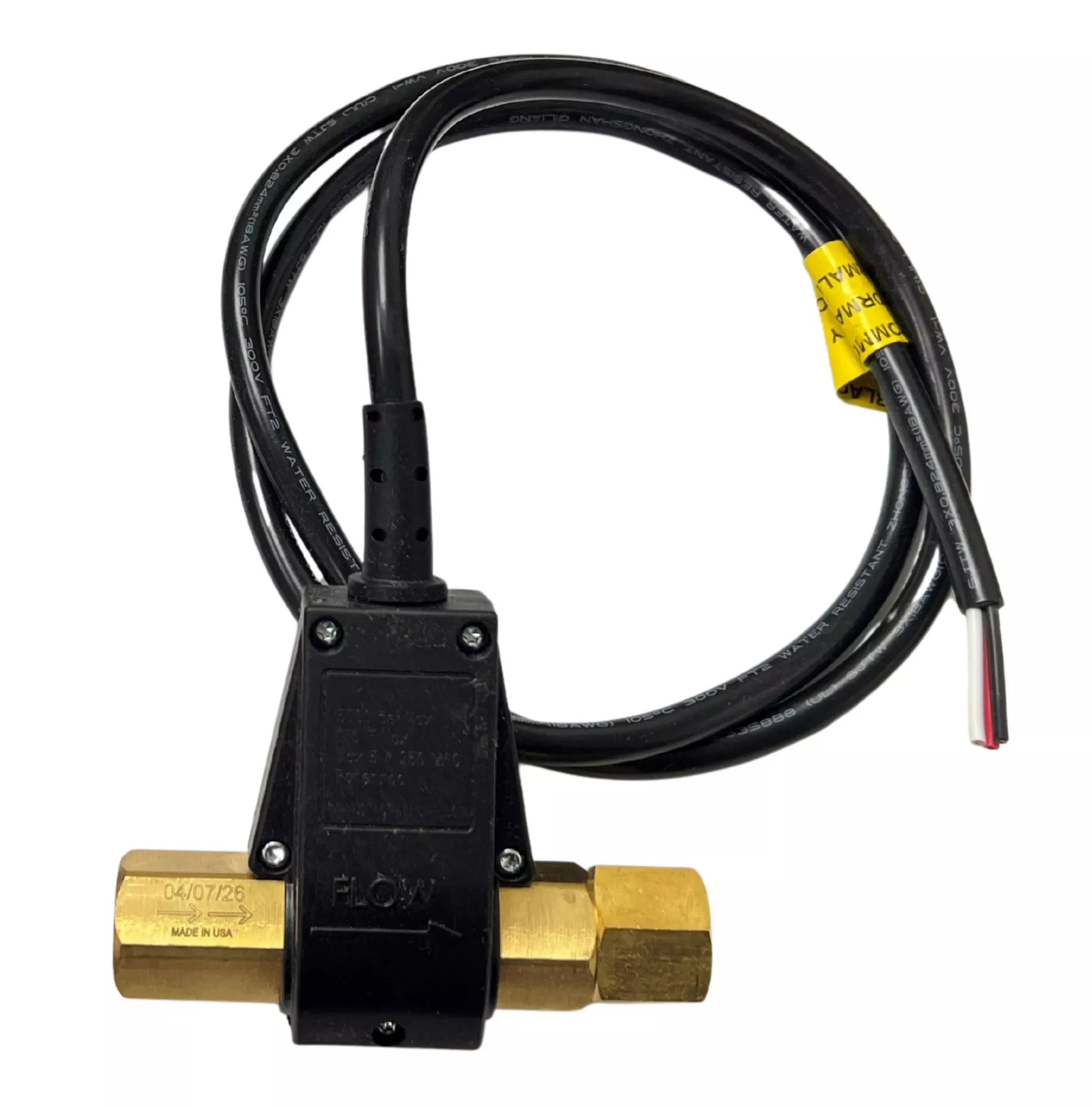

GP “TMT” In-Line Flow Switch, Mounts In Any Position

General TMT Flow Switch. Tri-magnet technology in-line flow switch

Features• Micro-switch technology eliminates reed switch• Activates with 1.25 GPM flow• Stainless Steel shuttle• Minimal pressure drop up to 12 GPM flow• Can be mounted in any position

TMT Technical Data Sheet

Specifications• Maximum Operating Pressure: 5,000 PSI• Minimum Flow Required for Activation: 1.25 GPM• Maximum Operating Flow: 12.0 GPM• Operating Temperature Range: 40 – 180 ºF• Electrical Lead Length: 48” – 18AWG• Max Switching Voltage: 250 VAC• Max Switching Current: 5 AMPS• Inlet: 3/8” x 18 NPT-F• Outlet: 3/8” x 18 NPT-F• Replaces GP 100934• Materials: Brass, Stainless Steel, Plastic, Nickel-plated Neodymium• Weight: 1.0 Lb
