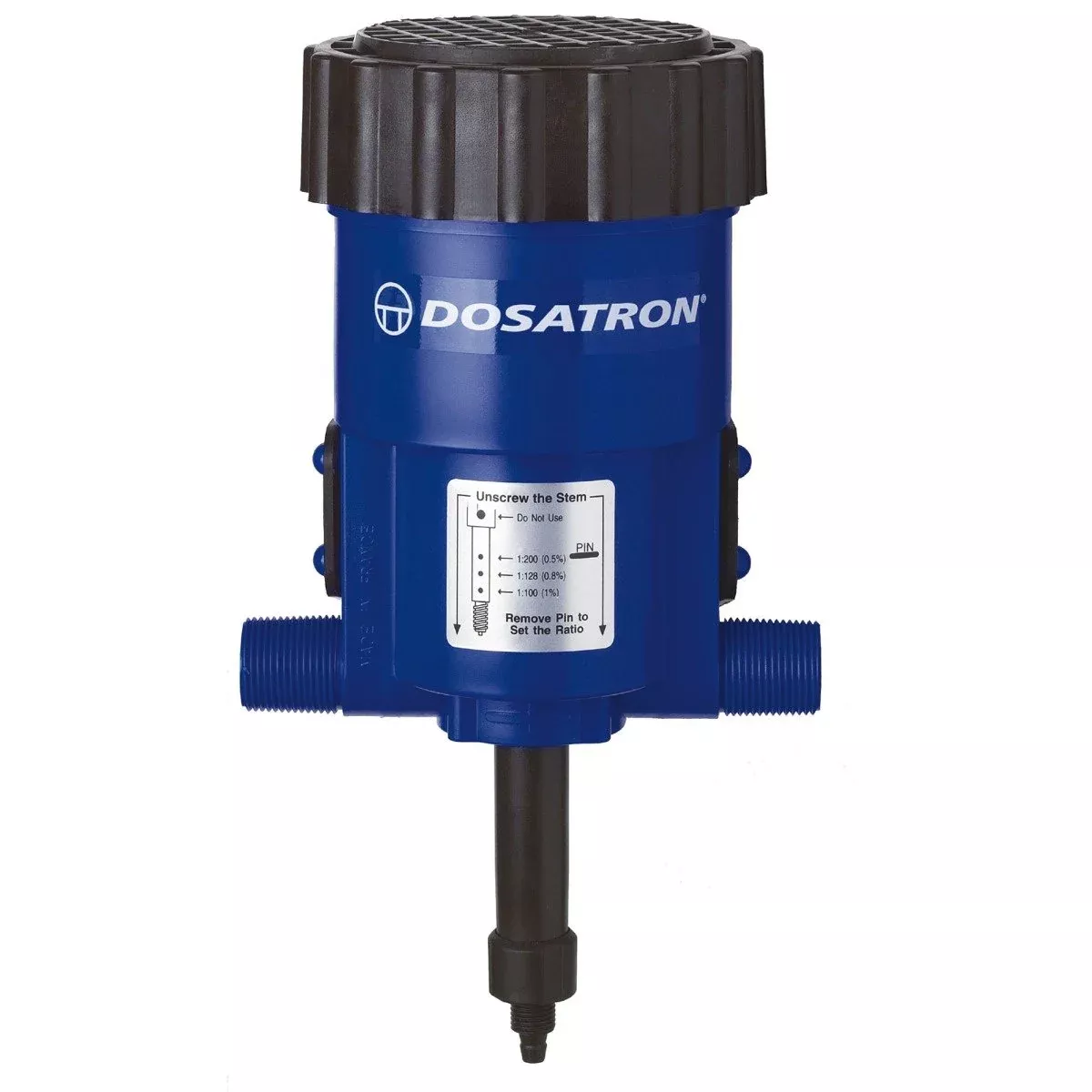

More about Dosatron® D128R Medicator
Easily dispense antibiotics, vaccines, vinegar, chlorine, and disinfectants with the Dosatron D128R Medicator. Used for more than 30 years in the farming community, this injector has a long history of proven performance. Powered by water pressure, the dispenser installs directly in your water supply line.
A reliable way to inject antibiotics, vaccines, vinegar, chlorine, and disinfectants into water lines, the dispenser mixes the appropriate amount of solution with water regardless of variations in flow or pressure in your main line.
Specifications
- 3 Fixed Ratios: 1:200, 1:128, 1:100
- Injection Percentages: 0.5% to 1%
- Maximum Temp: 104 F
- Housing Material: Polyacetal (Standard Blue)
- Connecion Size: 3/4″ NPT
- Dimensions: 13.2″ x 7.2″ x 6.4″
- Weight: 3.385 lbs.
- Included Accessories: Mounting bracket, suction hose, weighted strainer & quick start guide
- Recommended Accessories: 200 Mesh Filter, Check Valve, Pressure Regulator, Flow Restrictor
| QC Part | Model | Flow Rate | Injection Ratio | Oper. Pressure | Inlet/Outlet |
|---|---|---|---|---|---|
| 120606 | D128R | 0.09-7 GPM | 1:200,1:128,1:100 | 7-70 PSI | 3/4″ NPT |
| 120607 | D25RE2 with Bypass Top | 0.05-11 GPM | 1:500 to 1:50 | 4.3-85 PSI | 3/4″ NPT |
| 120610 | D25RE2 without Bypass Top | 0.05-11 GPM | 1:500 to 1:50 | 4.3-85 PSI | 3/4″ NPT |
| 120608 | D25F | 0.05-11 GPM | 1:128 | 4.3-85 PSI | 3/4″ NPT |
