Product Description

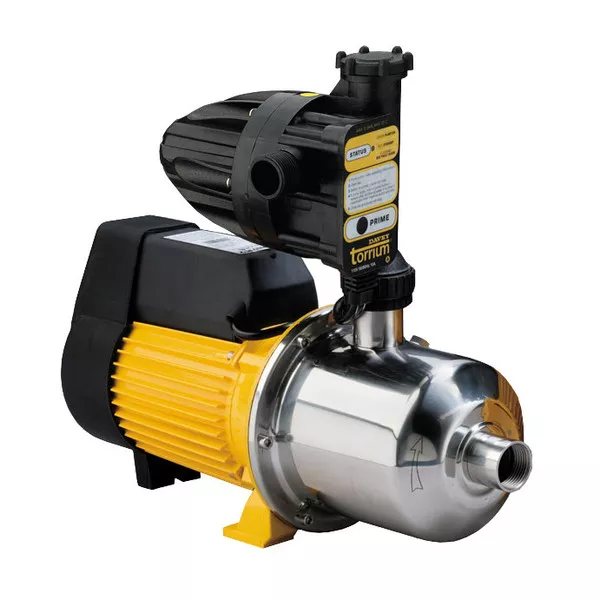

Davey BT30-30 Torrium2 Booster Pump
The Davey BT30-30 booster pressure system consists of a robust centrifugal pump fitted with the intelligent Davey Torrium®2 water pressure controller to deliver boosted water pressure to your home or other application. Consumers can enjoy strong and seemingly constant water pressure due to Torrium®2’s constant flow operation. Due to good design, Torrium®2 operates with a lower head loss than comparable water pressure controllers to provide superior hydraulic performance giving more pressure with less wasted energy.
Davey BT30-30 Torrium2 Booster Pump Applications:
- Homes where the incoming municipal water supply pressure is inadequate
- From underground or surface water supplies
- Automatic water transfer
- Applications where pressure ‘cycling’ must be avoided or where the pump may have an interrupted water supply
- Domestic and light industrial irrigation
Torrium2 Controller
The Torrium2 boosts slow or fluctuating mains water pressure to give you strong, even water pressure for comfort and convenience. The Torrium2 can also pressure boost water from rainwater tanks. To prevent annoying fluctuations in water temperature during showers, Torrium2 uses its intelligence to provide households with constant flow to provide even water pressure. It does this with its innovative pressure and flow sensors to start the pump on a pressure drop and sto stop it on low flow. This avoids pump cycling when there is continuing household demand for water.
Davey BT30-30 Torrium2 Booster Pump Specifications:
- Inlet: 1-1/4″ FNPT
- Outlet: 1″ MNPT
- Flow Rate: 30 gpm @ 30 psi
- Max Inlet Pressure: 50 psi
- Max Boost: 50 psi
- Max Total Head: 76 psi
- Max Suction Lift: 25 ft.
- Max Liquid Temp: 150° F
- Max Ambient Temp: 120° F
- Voltage: 220V
- Single Phase
- Length: 16.14″
- Height: 12.69″
- Width: 8.93″
- Cord Length: 80″
Davey BT30-30 Torrium2 Booster Pump Specifications
Davey BT30-30 Torrium2 Booster Pump Operation Manual
