Product Description

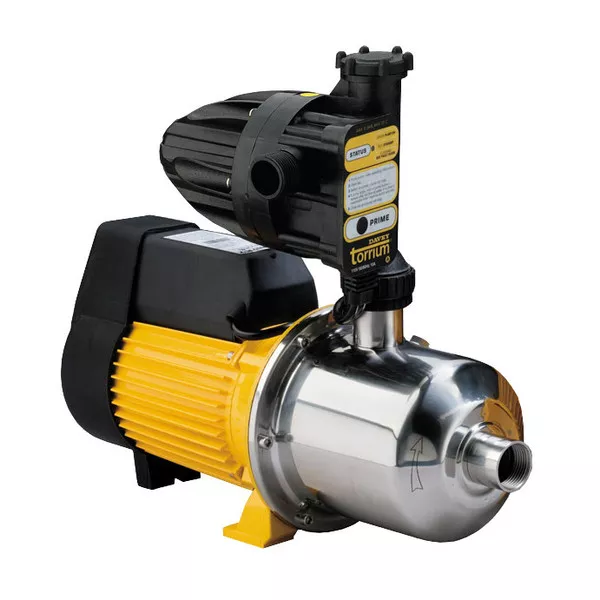

Davey BT14-30 Torrium2 Booster Pump
The Davey BT14-30 booster pressure system consists of a robust centrifugal pump fitted with the intelligent Davey Torrium®2 water pressure controller to deliver boosted water pressure to your home or other application. Consumers can enjoy strong and seemingly constant water pressure due to Torrium®2’s constant flow operation. Due to good design, Torrium®2 operates with a lower head loss than comparable water pressure controllers to provide superior hydraulic performance giving more pressure with less wasted energy.
Davey BT14-30 Torrium2 Booster Pump Applications:
Ideal for pumping clean, non-volatile liquids without fibres or solids in such applications as:
- Homes where the incoming municipal water supply pressure is inadequate
- From underground or surface water supplies
- Automatic water transfer
- Applications where pressure ‘cycling’ must be avoided or where the pump may have an interrupted water supply
- Domestic and light industrial irrigation
- Replaces the Davey HydraScan HS12-30HT1
Davey BT14-30 Torrium2 Booster Pump Specifications:
- Inlet: 1-1/4″ FNPT
- Outlet: 1″ MNPT
- Flow Rate: 14 gpm @ 30 psi
- Max Inlet Pressure: 60 psi
- Max Boost: 40 psi
- Max Total Head: 76 psi
- Max Suction Lift: 25 ft.
- Max Liquid Temp: 150° F
- Max Ambient Temp: 120° F
- Voltage: 120V
- Length: 13.8″
- Height: 19.53″
- Width: 8.66″
- Cord Length: 80″
Davey BT14-30 Torrium2 Booster Pump Specifications
Davey BT14-30 Torrium2 Booster Pump Operation Manual
