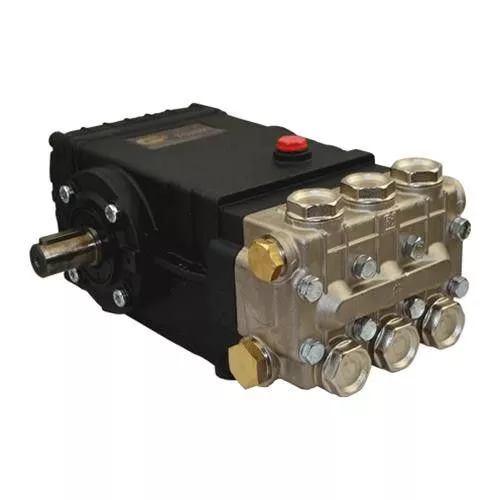

General TS2021L Triplex Plunger Pump (Left Handed). The preferred pump frame in the pressure cleaning industry
Features:• Forged, nickel-plated, brass manifold with an exclusive lifetime warranty• Large-capacity, die-cast, anodized aluminum oil-bath crankcase• Over-sized connecting rods for maximum life• Heavy-duty tapered roller bearing • Solid ceramic plungers with continuously lubricated packings• Unitized stainless steel inlet and discharge valves
Specifications:• Triplex Plunger Pump• Solid Shaft for Belt or Gear Drive• Max. Volume: 5.6 GPM• Max. Discharge Pressure: 3,500 PSI• Max. Pump Speed: 1450 RPM• Shaft Diameter: 24mm Solid• Max. Horsepower Requirements: 18.0 GHP• Max. Fluid Temp.: 165° F.• Inlet Ports (2): 1/2-14 BSPP-F• Discharge Ports (2): 3/8-19 BSPP-F• Drive Side: Left• Note: Item for sale is PUMP ONLY as shown in picture and does not include unloader which is required for proper operation• Weight: 32.0 lb.
